TEMPERATURE SENSOR | PLATINUM RESISTANCE BULB (LOW TEMPERATURE)

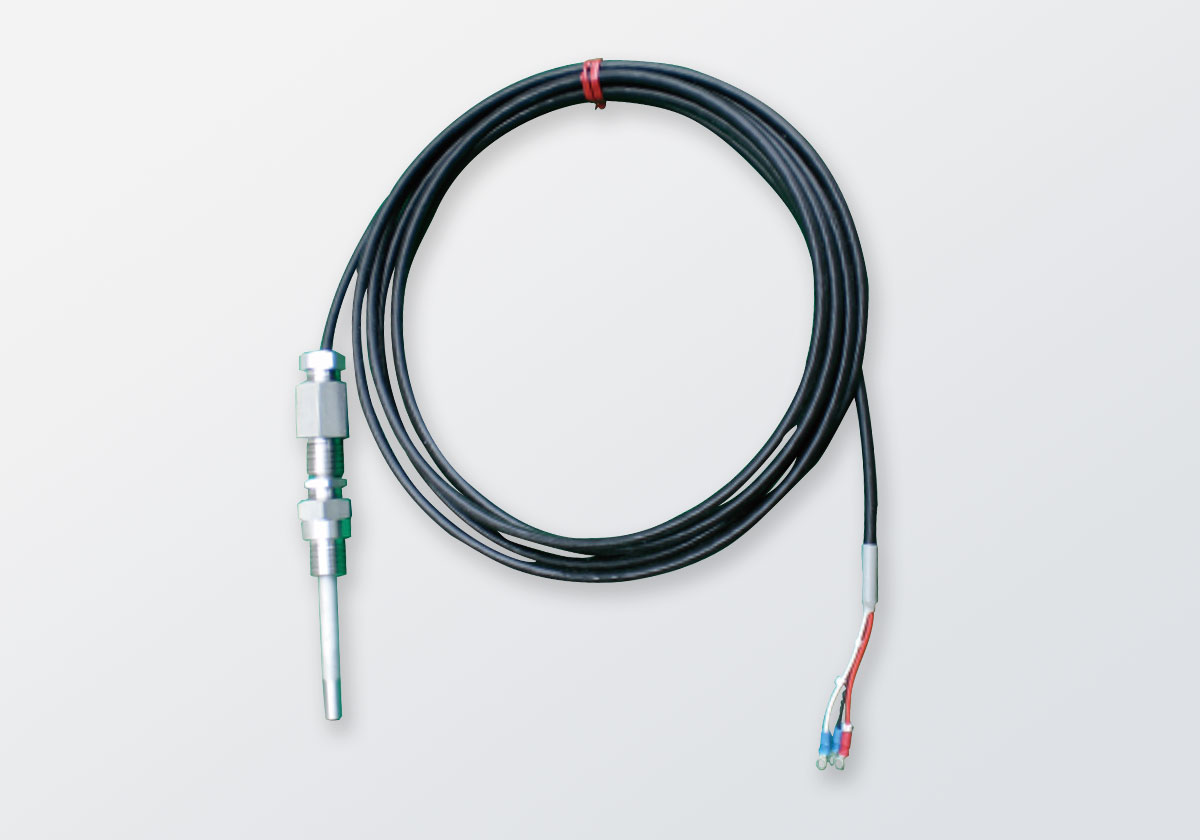

PTR-M(Wire Type)

PTR-M(Wire Type)

Outline

The low temperature platinum thermal resistance bulb is used to the measurement and monitoring for the temperatures of lubricating oil, cooling water, and bearing of various ship-engines as well as the air temperature. Since the delay characteristic (response speed) is most important factor for low temperature use, this thermal resistance bulb is so designed that its resistance element keeps excellent heat conductivity to minimize heat which may otherwise develop in it. The adoption of double protection tube does not affect the characteristics, maintaining the same characteristics as those of single protection tube types.

Features

For Bearing, Tanks
(With Cable)

Specification

Nominal Resistance(at 0℃) Pt100Ω
Current (mA) 2
Class Class B
Operating Temp. (℃) 0~100℃
Material of Tube(Standard) SUS304
Connecting 3 Wire
Protecting Tube Single
Terminal Type Cable
Length L(mm) -
Diameter φD(mm) 4.8, 10, 12
Attached Plug G1/2, G3/4, M24, M33
Application Bearing
