The cryogenic temperature sensor of Meiyo which moved along with a history of LNG ship building of Japan now contributes to the world LNGC and offshore projects such as FSRU and FLNG with high technology and quality.
In 1982, first cryogenic temperature sensor was supplied to Mitsui Engineering & Shipbuilding Co., Ltd., and we have been supplying our products to more than 500 vessels so far (as of 2020). As reference, it is said that the total number of current LNG vessels is around 600 ships, we believe that you understand our high market share.
Our products are available for various types of thank shapes such as Moss, Membrane, SPB, and so on for LNGC. We are also able to produce incidental parts such as penetration fitting and sensor pockets with requested shape. In addition, even in rigging, we are able to supply terminal box with high sealing performance and intrinsically safe type barrier box. We provide total support with our production technologies and design skills which have been cultivated so far.

Followings are the equipment that our temperature sensors are available with;
● Engine/ Generator
● Boiler
● Pump
● In-tank of Ballast, Chemical, and Fuel Oil
● Inner wall of cargo tank such as LPG/LNG
● Plumbing
● Shaft Bearing
● Stern Tube/ Cofferdam

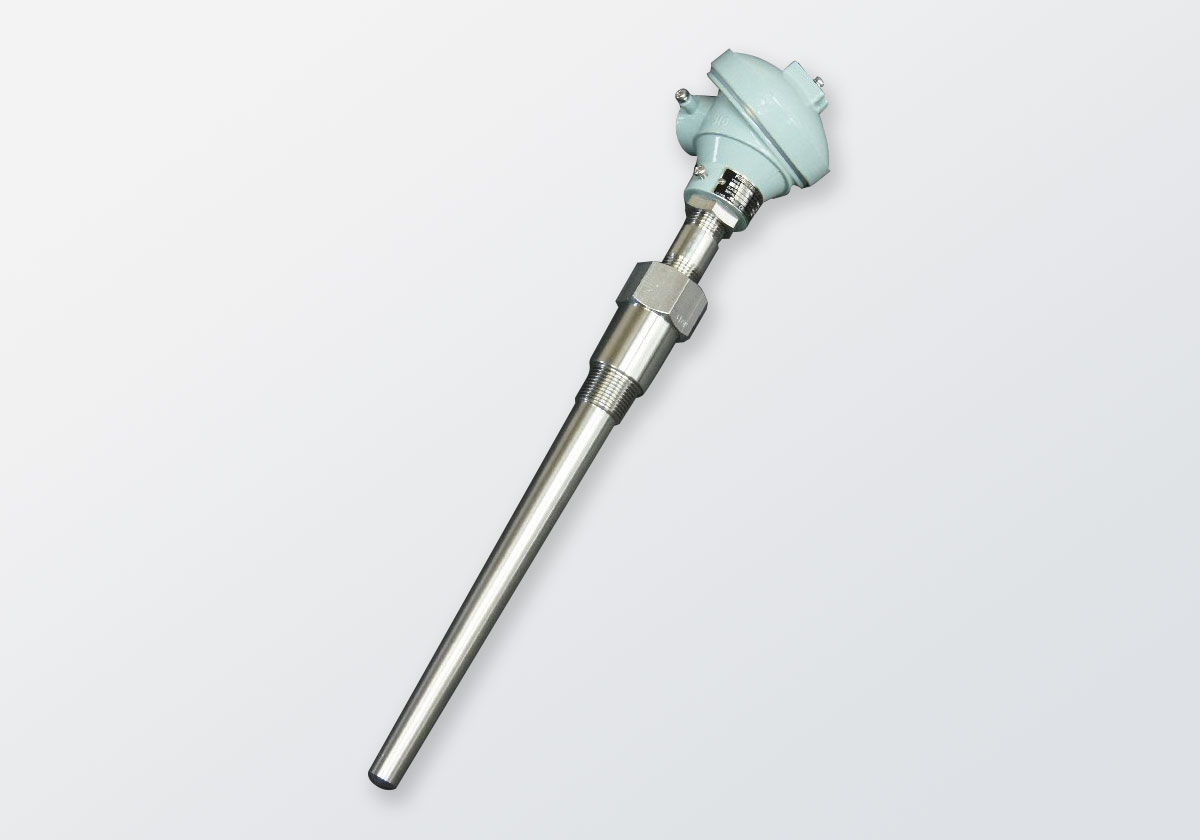

The main purpose of this sensor is to use it by insert to the piping such as gas piping. The metal of protecting tube is chosen the high corrosion proof such as SUS316L, and enable the measurement of cryogenic condition up to -200℃. The terminal head is also produced by SUS316L, and is possible to us at exposed condition. The structure of this sensor is that it can change an inner element part without taking our and putting in of protecting tube.


Nominal Resistance(at 0℃) Pt100Ω
Current (mA) 2
Class Class A
Operating Temp. (℃) -200〜100
Material of Tube(Standard) SUS316
Connecting 3 Terminal
Protecting Tube Double
Terminal Type Terminal Box
Length L(mm) 100, 120, 150, 200, 250
Diameter φD(mm) 18/15, 22/15,20/15, 28/15,17
Attached Plug G3/4, M24, M33,
Application LNG pipeline

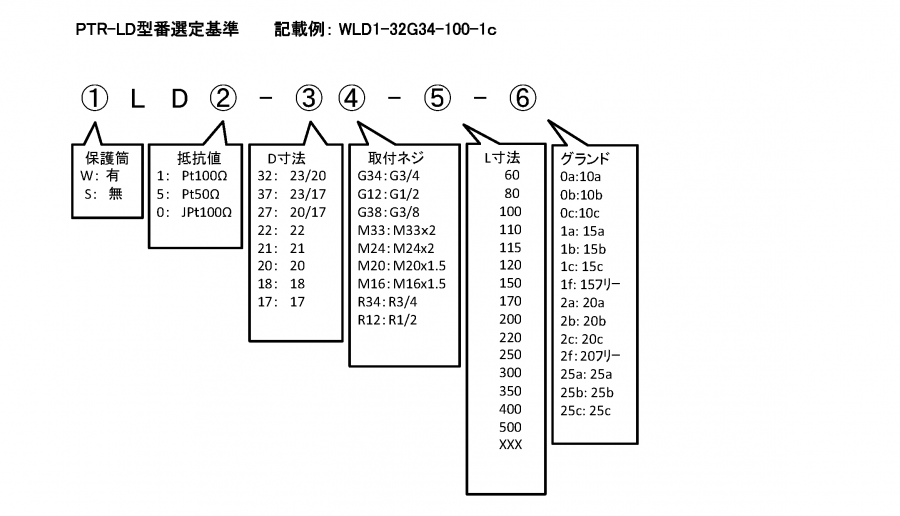

PTR-LD format
