PRESSURE SENSOR ｜ PRESSURE TRANSMITTER
SMP-MB-5
Outline
SMP-M Series Pressure Transmitters are a device for converting pressure variations into electrical signals (4-20mA DC) with high fidelity. And the pressure element is made by spattering thin film of strain gauge with SUS diaphragm, so be made compact.
Features
Wall mounting type for easy maintenance.
Specification
| Power | DC24V (-25%〜+30%) |
|---|---|
| Power ripple | 500mVp-p less |
| Output signal | DC4〜20mA |
| Load resistance | 550Ω at DC24V |
| Resolution | ±1%F.S.(±0.5%F.S. option) |
| Temperature drift | ±0.03%F.S./℃ |
| Pressure resistance | 1.9 times the maximum measurable pressure |
| Protection | IP56 |
| Cable gland | 46~12 |
| Color | Manufacturer standard |
| Material: Connect port | SUS |
| Material: Case | Aluminium Diecasting |
| Weight | 800g |
| Operating temperature | -20〜70℃ |
| Correction temperature | 5〜55℃ |
| Vibration resistance | 5〜25Hz±1.6mm, 25~100Hz 4G |
| Others | EMI Resistance |

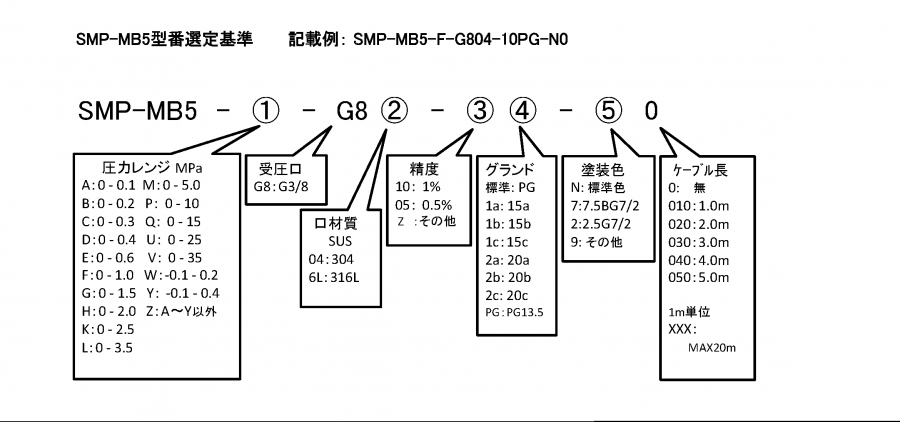

Format
