MIC-2010 Combustion Pressure Sensor

MIC-2010  Combustion Pressure Sensor

Outline

This sensor is a lightweight and compact sensor that can continuously measure the combustion pressure of a diesel engine without cooling. Combustion pressure and peak hold signals are output as standard 4 to 20mA DC signals, so it is easy to monitor Pmax trends as well as combustion analysis.

Features

◇ Combustion pressure and peak hold signal output
◇ Continuous measurement without cooling.
◇ Light weight and compact size
◇ High speed, and sensitive
◇ Low price

Specification

Measurement Range 0~20 MPa
Measurement Accuracy Combustion Pressure: ±1% / Peak Hold Pressure: ±1%
Output Signal DC4~20mA
Usage Environment Pressure receiving surface: 0~350℃ / Amp. Box : 5℃~55℃ / Relative Humidity: 5~95% ※Without Condensation
Power Supply DC24V ±10%
Power Consumption 1.5W
Material Sensor: Inconel 600 / Amp. Case: ADC

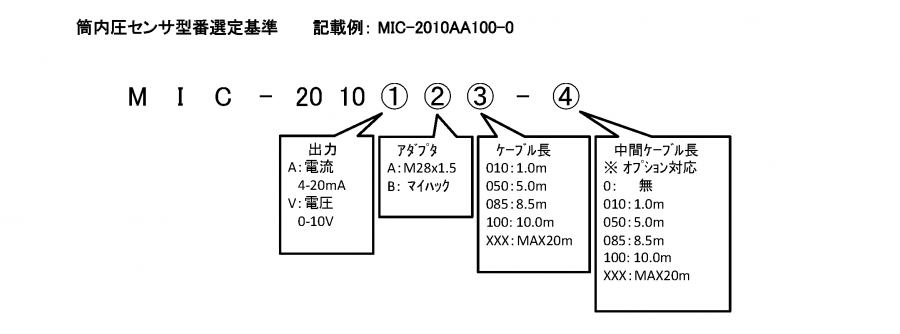

Format

MIC-2010  Combustion Pressure Sensor format
