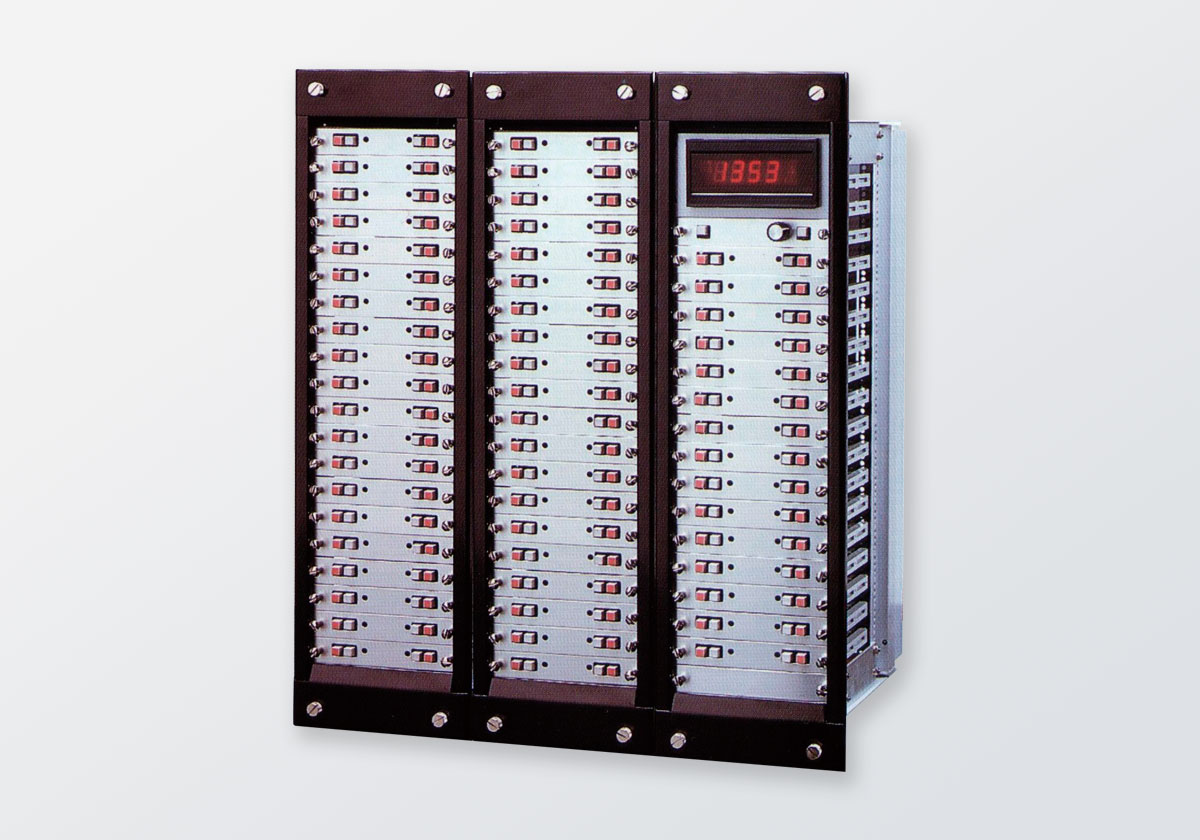

SMN-F2B Monitoring System
This product has been discontinued.（Successors and replacements：MCM-µ 16 Micro Computer Monitor）
Outline
An analog monitor is a system with measurement and alarm functions.
By adding various measurement boards, it supports multi-point monitoring.
Features
【INPUT】
Temperature Pt100Ω、Pt50Ω、JPｔ100Ω、Thermo Couple K、T,J
Pressure DC4〜20ｍA Others DC4〜20ｍA
Contact N/C
【OUTPUT】
Contact
Specification
| Shape | Embedded in panel（W140 x H490 x D230） |
|---|---|
| Input Signal | Temperature： Resistance Bulb、Thermocouple / Pressure Transmitter：4-20mA DC, 2-wire type / Others 4-20mA DC or 1-5V DC / Connection ：Normal Close connection |
| Range | Temperature：-50〜0〜50℃, 0〜100℃, 0〜150℃, 0〜200℃, 0〜300℃, 0〜600℃, 0〜700℃, 0〜800℃ Pressure：0〜35MPa |
| Accuracy | (Environment 0〜55℃) Monitor Unit：±1.0% / Resistance Bulb：±0.5% / Thermocouple：±0.75% / Pressure Transmitter：±0.75% Indicator：±1.5% |
| Power | Nominal voltage：24V DC / Tolerance：-25%〜+30%(18〜31.2V) |
| Environment Condition | Environment Temperature： 0〜55℃（Accuracy Guaranteed）/ 0〜70℃（Operation Guaranteed） Humidity：95%RH |
