MYCOM-64S Data Logger

Outline

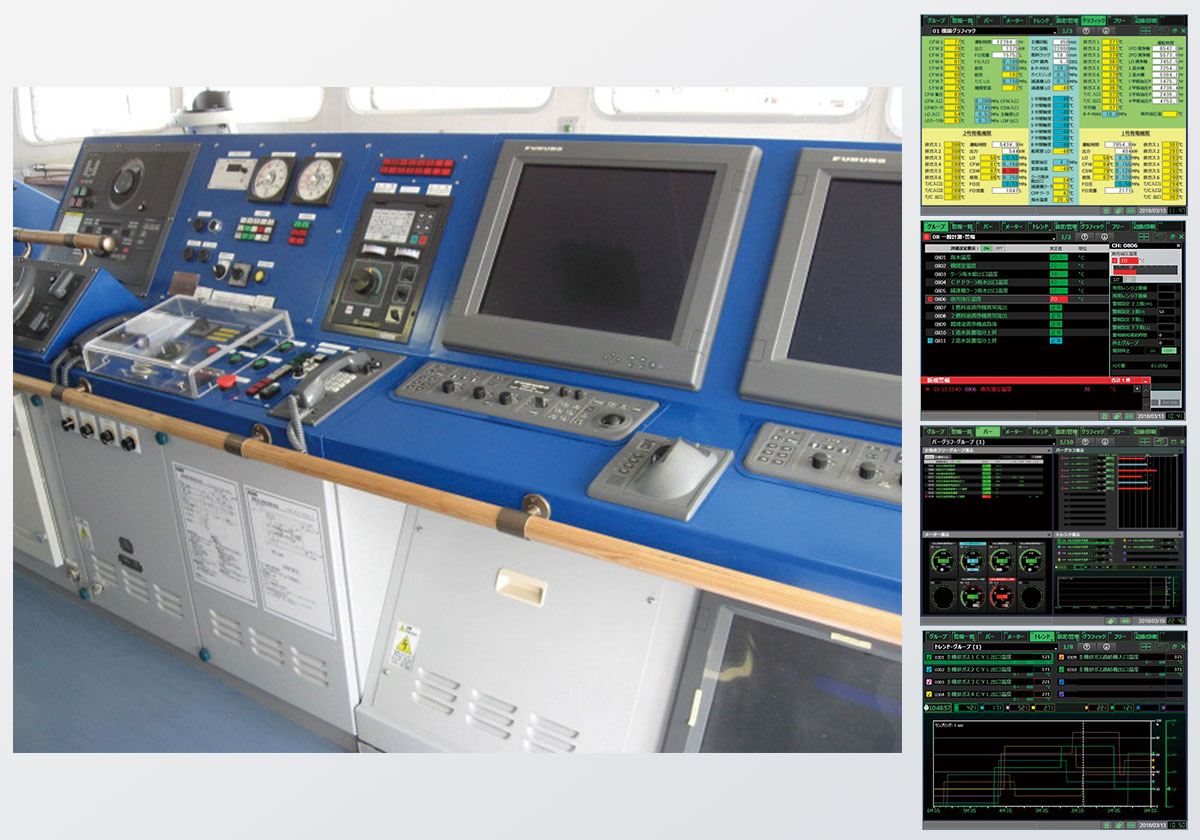

Data Logger can output warning and display graphic screen by gathering the signals from Temp. sensor, Pressure Transmitter, Pulse Generator, and so on. We can produce it with other monitoring systems and main engine remote control system.
Features
This is the most advanced data logger offering by Meiyo. It is a state-of-the-art logger that captures various data on engines, pumps, boilers, refrigerators, etc., and can be used as an option for data storage and ship-and-land communications. It corresponds to various vessel classifications.
Specification
Processor | Manufacturer :Intel, Series:Bay Trail, Frequency:1.33GHz Dual Core |
---|---|
Memory | Main Memory SO-DIMM 2GB(Max. 4GB) |
Storage | x1,SATAII(3Gbps) SLC, 16GB(Standard) x1, SATAII(3Gbps) (Option) |
I/O | x1ch, Display Port(may connect HDMI/DVI depends on adaptor) x1ch, Analog VGA x4ch, 10/100/1000Base-T x4ch, USB2.0 High/Full Speed x2ch, RS232C D-sub 9 pin |
Software | OS Microsoft Windows Embedded Standard 7 |
Power | Power Consumption: TYP 7.8W / Input Power:AC100/220V, DC24V |
Case Spec. | Size:W264xD206xH69mm / Weight: About 3.8kg |
Environment | Operation:5〜55℃ Storage:-10〜70℃ Humidity:Under 95%RH (No condensation) RoHS2:Applied |
Vessel Classification | Type Approval:NK, LR, DNV GL, ABS, CCS |
