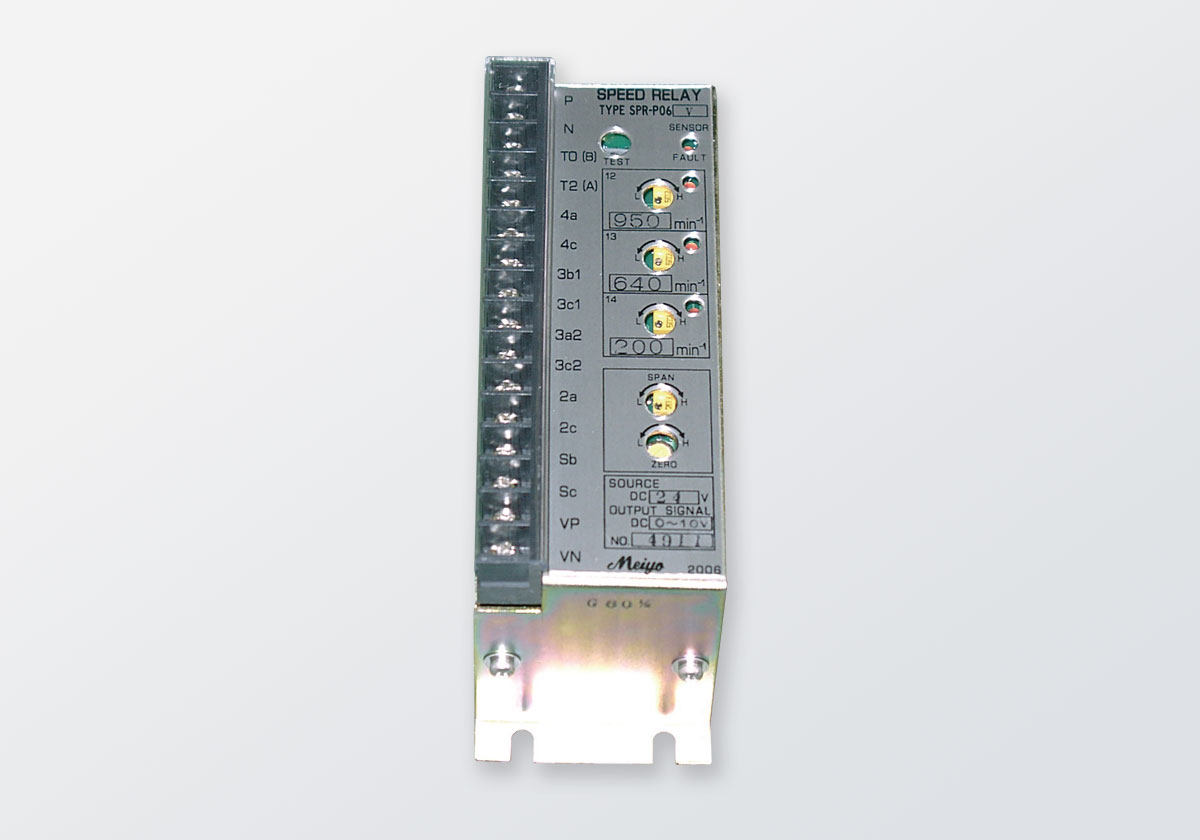

SPR-P06
Outline
A switch that can detect engine start, rating, and overspeed.
It also supports detection of sensor anomalies and various vessel classes.
Features
【OUTPUT】
DC0〜10V（SPR-P06V）
DC4〜20mA（SPR-P06I）
Contact 4 points
Specification
| Power | DC24V （18〜32V） Allowable ripple voltage under 2Vp-p |
|---|---|
| Power Consumption | 2.2W |
| Input voltage level | AC1.0Vp-p〜AC130Vp-p (Magnetic pickup sine wave) Allowable noise voltage 0.6V p-p or less |
| Setting range | Start detection：（14） Rating detection：（13） Acceleration detection：（12） Refer to setup list ＯＮ－ＯＦＦ range：14-0min¯¹ 12,13-20min¯¹ |
| Input | Pulse |
| Output | Non-voltage contact：1a (AC100V/DC24V 0.5A) each Output Voltage： 06V DC0〜10V 06I 4-20mA Allowable load resistance 2kΩ |
| Detection accuracy | ±1.0% at F.S. |
| Measurement accuracy | ±1.0% at F.S. |
| Detection Speed | Start detection（14）：In 0.2 sec Rating detection（13）： In 0.5 sec Overspeed detection（12）： In 0.7 sec |
| Diagnosis | Detector disconnection alarm Contact 1a (AC100V/DC24V 0.5A) |
| Operating Temperature | -15 〜70℃ |
| Storage Temperature | -20 〜75℃ |
| Relative Humidity | 95%RH以内 |
| Vibration | 0.7G |
| Impact | Within 10Ｇ |
| Body | SPCC ｔ1.0 |
| Color | BC coating |
| Weight | 0.4 kg |
