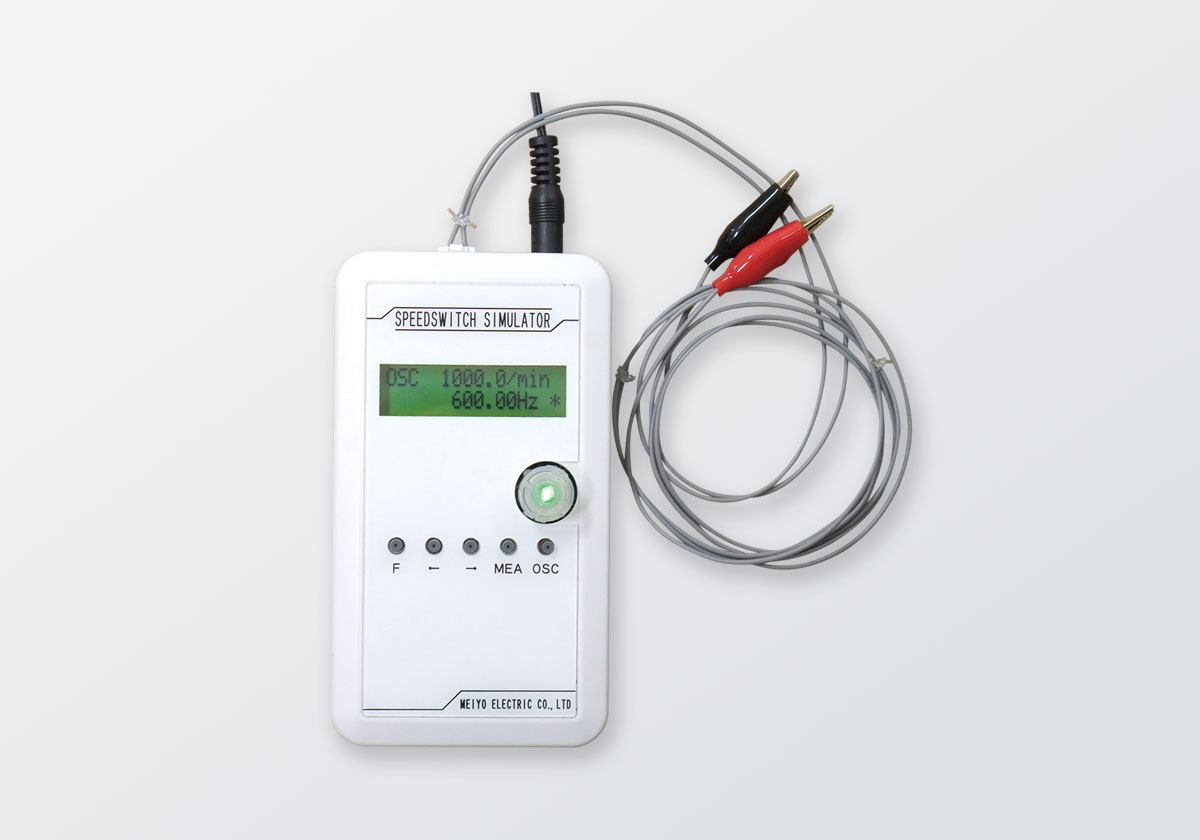

SIMU-01 Speed Switch Simulator
Outline
This is a high-precision handy speed switch simulator that incorporates both a function to generate a pulse waveform to test a speed switch (speed relay) and a function to measure the pulse sensor (pickup) signal and display the rotation speed.
Features
【INPUT】
Sine wave：min 2Vｐｐ max 100Vpp
Square wave：Open collector
Frequency measurement：0, 2〜20KHz
【OUTPUT】
Sine wave：0〜±10V
Square wave：Open collector
Frequency generation：0〜20KHz
Specification
| Power | Battery: (AA, LR6) x2, Alkaline battery or Ni-MH Power supply：5V0.5A(AC Adaptor) |
|---|---|
| Battery Life | 8 hours |
| Frequency generation function | 0〜20kHz±0.05%(at Num.), when under 50Hz ±0.02Hz |
| Frequency measurement function | 0.2〜20kHz±0.05%(at Num.) ±1digit, but to be ±0.02Hz under 50Hz. |
| Waveform Mode | Sine mode Generate：Max ±10V, Measurement：Min 2Vpp, Max 100Vpp. Square wave mode Generate/Measurement：Open collector |
| Size | 76mmx135mmx27mm(protrusions excluded) |
| Weight | 400g |
