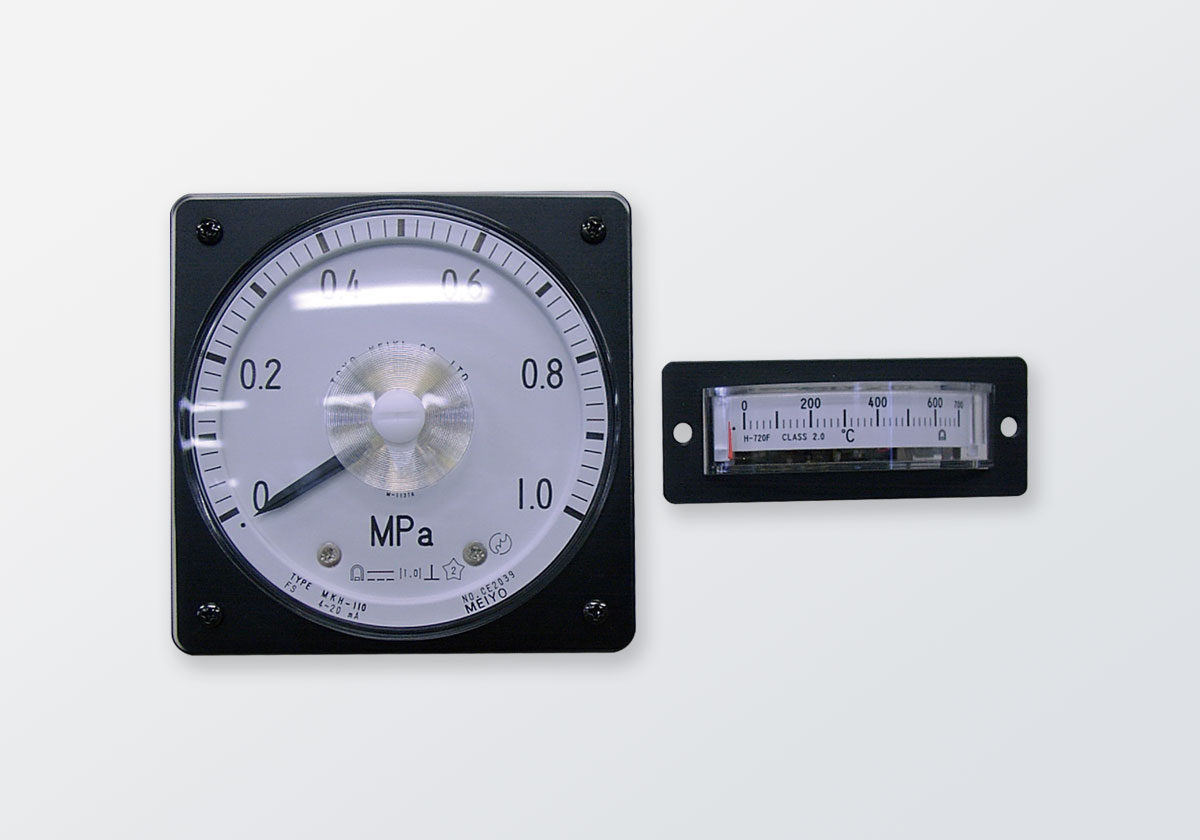

MKH-110, H720 Analog Indicator
Outline
Analog Indicator
This indicator can display analog signals from temperature sensors, pressure transmitters, pulse generators, etc. There is a good point that can detect the crisis intuitively by looking at the angle of the pointer, which is not possible with digital display.
Features
【INPUT】
DC1〜５V, DC4〜20mA,
Possible with Lamp/EL Lighting
Amplifier can be included (Pt100Ω, Thermo Couple K)
Specification
| Case | MKH-110 : Steel （SPCC）/ H720 : Resin |
|---|---|
| Ambient temperature | 0〜50℃ |
| Relative Humidity | MKH-110 : 95±5%RH(No condensation) / H720 : Under 100% |
| Vibration | 0.7G |
| Withstand voltage | 1000V |
| Insulation resistance | Over 10MΩ |
| Color | N1.2 Semigloss（Black） |
