MDP-TEM
Outline

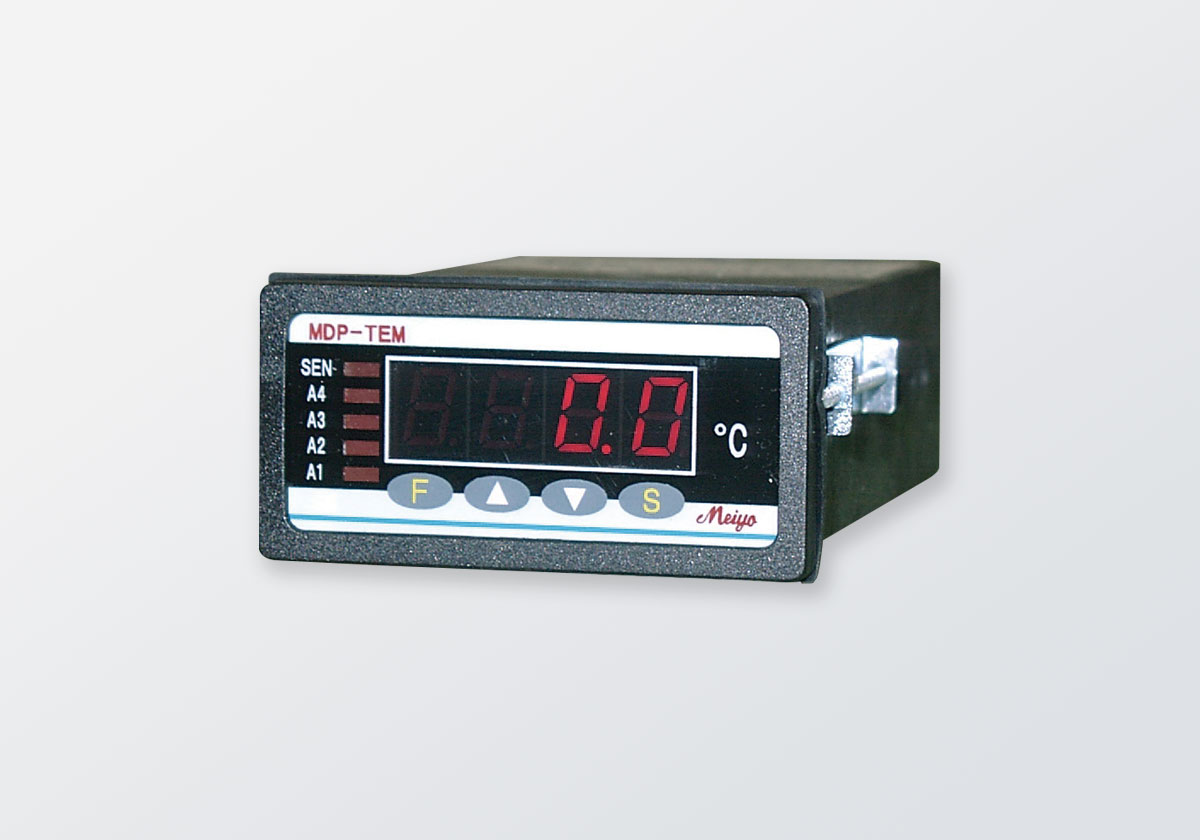

This is a digital indicator that can display temperature of temperature sensor Pt100Ω.
The number of contact output points is large, and tank level detection can be applied to outputs such as lower and lower limits, upper and upper limits other than lower and upper limits.
Features
【INPUT】
Pt100Ω
【OUTPUT】
Contact 5 points
DC4〜２０mA
Specification
| Power | DC24V±25% |
|---|---|
| Power Consumption | Maximum 3W |
| Measurement accuracy | 0.5%±1digit(at F.S.) |
| Detection accuracy | 0.5%±1digit(at F.S.) |
| Temperature coefficient | ±0.03%/℃ |
| Output signal | Analogue Output：4〜20mA/0〜Max value（Resistance MAX500Ω） Output：Non-voltage semiconductor contact AC100V 0.1A Pressure resistance 1500V N/C, N/O Software Switch |
| Max. Digital | 4 digitals |
| Display | Display： 7 segment LED(Red) （With brightness adjustment） Size of character 5.5mm(W)x10mm(H) Warning indicator：SEN(Red), A4(Red), A3(Red）, A1(Red) |
| Zero display | Upper digit zero suppression |
| Measurement brightness adjustment | 20 Levels |
| Contact output response tim | Within 0.3 sec （Step input） |
| Insulation resistance | 20MΩ or more between conductor and box（DC50V） |
| Withstand voltage | OutputーBetween box AC1500V for 1 min Resin |
| Performance guarantee range | 20±2℃（JIS F 0808） |
| Guaranteed operating temperature | -10〜 +70℃ |
| Storage temperature | -20〜 +65℃ |
| Relative humidity | Under 95℃(However, no condensation) |
| Ambient | No corrosive gas |
| Vibration | 5〜13.2Hz±1mm 13.2〜100Hz 0.7G |
| Impact | Under 10G |
| Case | Glass fiber reinforced resin |
| Color | Resin natural color (black) |
| Weight | 0.2 KG |
