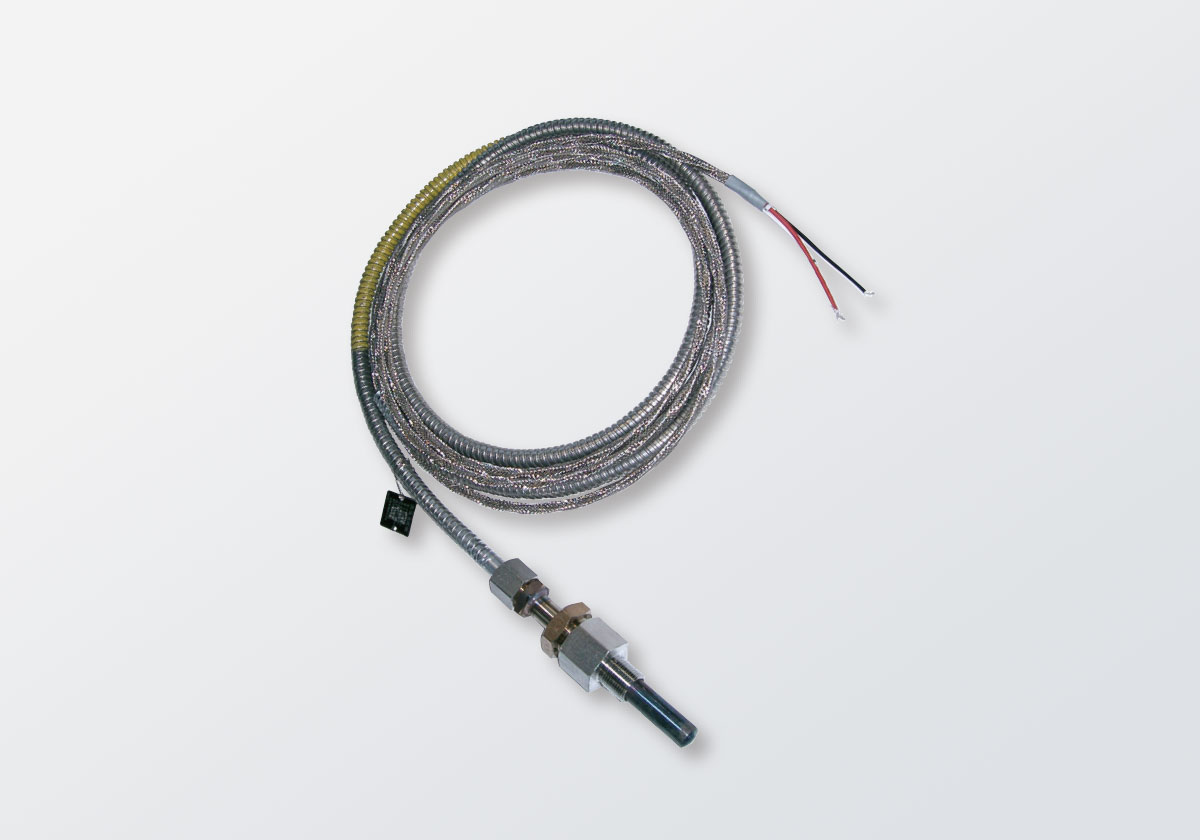

The platinum thermal resistance bulb is used to the measurement and monitoring for exhaust gas and steam temperatures of the main engine of a ship. This resistance element, provided as a unit by depositing platinum wires and internal conductors are to aluminum oxide bobbin, matches a thermocouple in mechanical strength. The platinum thermal resistance bule allows accuracy and stability even under such a strict environment as a continuous high working temperature of 700℃.
For Exhaust Gas of Diesel Engine
|Nominal Resistance(at 0℃)||Pt100Ω|
|Operating Temp. （℃）||0~700℃|
|Material of Tube（Standard）||SUS304|
|Length L(mm)||100, 120, 150|
|Attached Plug||G3/4, M24|
