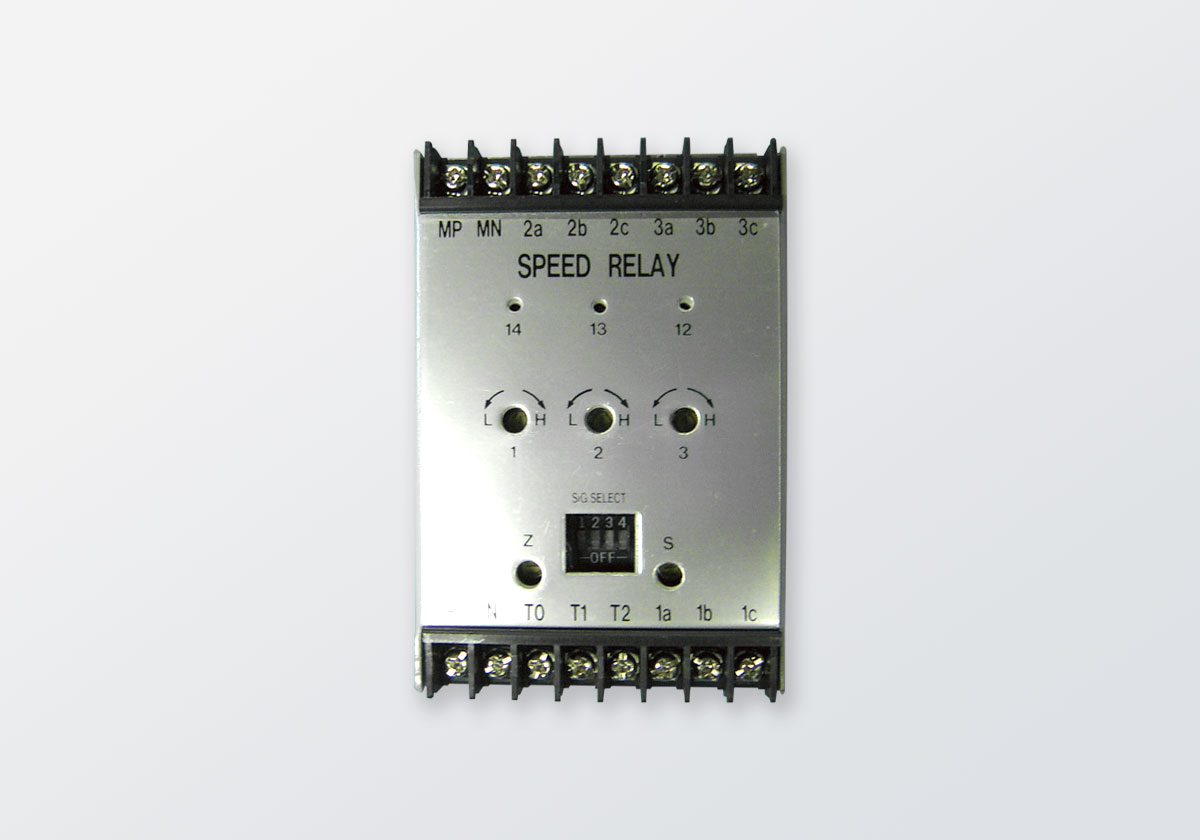

OTHER PRODUCTS ｜ SPEED RELAY
SPR-P05
Outline
A switch that can detect engine start, rating, and over speed.
It corresponds to various vessel classifications.
Features
【OUTPUT】
DC1〜5V
Contact 3 points
Specification
| Power | DC24V |
|---|---|
| Power Consumption | 1.8W |
| Input Voltage Level | AC1.0Vp-p〜AC80Vp-p (Magnetic pickup sine wave) |
| Setting Range | Start detection：（14）±40% Rating detection：（13）±30% Acceleration detection：（12）±35% ON-OFF range：14-50rpm 13,12-200rpm |
| Input | Pulse |
| Output | Non-voltage contact：1C(AC100V/DC24V 0.2A) each Output Voltage：DC1〜5V |
| Detection Accuracy | ±1.0% at F.S. |
| Measurement Accuracy | ±1.0% at F.S. |
| Operating Temperature | -15 〜70℃ |
| Storage Temperature | -20 〜75℃ |
| Relative Humidity | Within 95%RH |
| Vibration | 0.7G |
| Impact | Within 20Ｇ |
