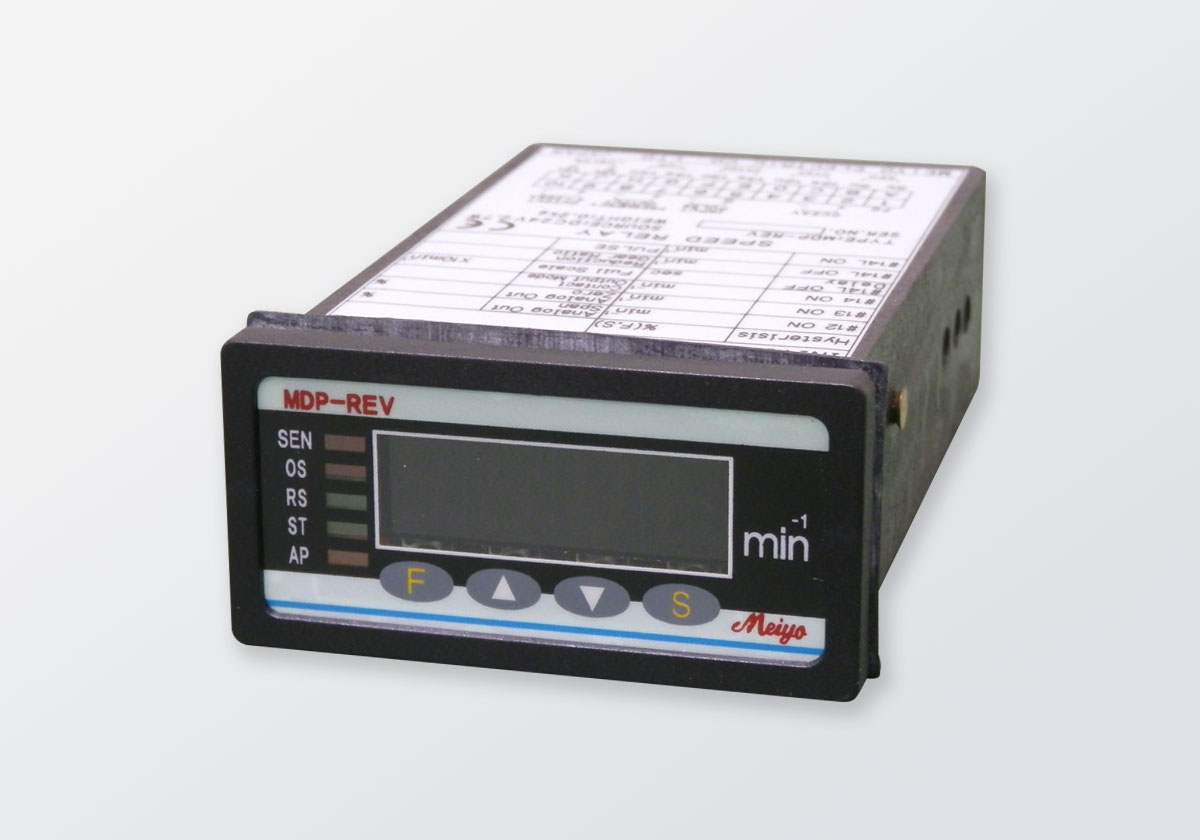

MDP-REV
Outline
Conventional analog speed relays have the demerit of increasing the number of types for each engine because the components mounted on the board are changed for each engine. There is an advantage that the setting can be changed on the digital display screen while keeping it.
Features
【OUTPUT】
DC4〜20mA
Contact 5 points
Specification
| Power | DC24V±25% |
|---|---|
| Power Consumption | Maximum 2.7W |
| Measurement Resolution | 0.05%±1digit(at F.S.) |
| Detection Resolution | 0.05%±1digit(at F.S.) |
| Measurement Range | 0〜20kHz/0〜9990/4〜20mA(但し,2Hz以下を除く) |
| Input | Sine：AC2Vp-p〜288Vp-p (AC0.7Vrms〜100Vrms) / Square wave：Low level under 0.5V, High level more than 5V and under 30V. |
| Output signal | Analog output：4〜20mA/0〜Max 500Ω Contact output： AC100V 0.1A N/C, N/O software switch pulse output 1 rotation 1Hz（except under 60Hz）0/15C(resistance over 5kΩ) |
| Maximum display digits | 4 |
| Display | 7 segment LED(RED) （Brightness adjustable） |
| Contact output response time | Under 0.3 sec（step input） |
| Withstand voltage | 1500V AC for 1 minute between contact output and box |
| Guaranteed temperature range | +5〜 +55℃ |
| Guaranteed operating temperature range | -10〜 +70℃ |
| Storage Temperature | -20〜 +65℃ |
| Relative Humidity | Under 95% （Non-condensation） |
| Ambient atmosphere | No corrosive gas |
| Vibration | 5〜13.2Hz±1mm 13.2〜100Hz 0.7G |
| Impact | Under 10G |
| Box | Glassfiber Reinforced resin |
| Color | Resin natural color (black) |
| Weight | 0.2kg |
