OTHER PRODUCTS ｜ OIL MIST DETECTOR & MONITOR
High Sensitivity Oil Mist Sensor
Outline
◇ Possible to measure low concentration oil mist with high sensitivity sensor.
◇ Continuous monitoring is possible.
◇ Lightweight and compact sensor / amplifier.
Features
■Available for low to high range.
■ With compact sensor, continuous measurement of oil mist is possible regardless of the installation location.
■ Grasp the state of the environment / equipment by digitizing the working environment and the amount of oil mist in the equipment.
Specification
| Measurement Range | 0〜5mg/m3 / 0〜1.0mg/ℓ and so on |
|---|---|
| Measurement Accuracy | ±５% at F.S. |
| Output Signal | DC 4 〜 20 mA |
| Usage Environment | 5℃〜55℃ 5〜95%RH ※Without Condensation |
| Storage Environment | -15℃〜80℃ ５〜95％RH ※Without Condensation |
| Power Supply | DC24V ±10％ |
| Power Consumption | 2.4W |
| Material | Sensor：PBT Resin / Amp. Case： Steel（SPCC） |

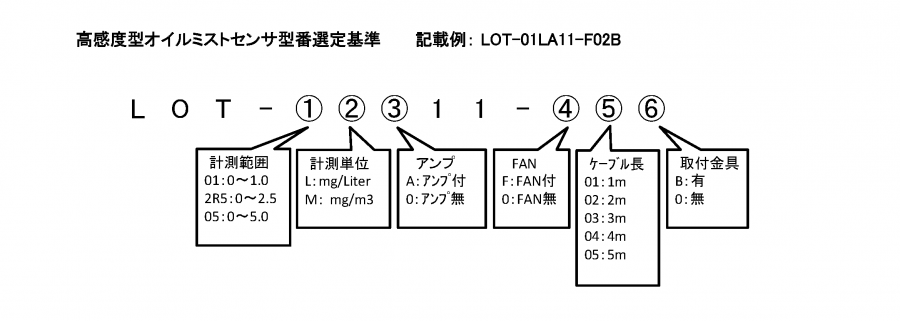

Format
